Firewall Fundamentals | TryHackMe Write-Up • FarrosFR

Here i want to share about my write-up for the room Firewall Fundamentals ↗ (Premium Room), learn about firewalls and get hands-on with Windows and Linux built-in firewalls. I wrote this in 2025 and hope it is useful for learning about cybersecurity.

Task 1: What Is the Purpose of a Firewall#

A firewall is designed to inspect a network’s or digital device’s incoming and outgoing traffic.

Learning Objectives#

After completing the room, you will have a basic understanding of the following areas:

The types of firewalls
The firewall rules and its components
Hands-on Windows built-in firewall
Hands-on Linux built-in firewall

Room Prerequisites#

Networking Concepts

Which security solution inspects the incoming and outgoing traffic of a device or a network?

Firewall

Task 2: Types of Firewalls#

There are many different types of firewalls, and they work on different OSI model layers.

Stateless Firewall
Stateful Firewall
Proxy Firewall
Next-Generation Firewall (NGFW)

Which type of firewall maintains the state of connections?

stateful firewall

Which type of firewall offers heuristic analysis for the traffic?

Next-Generation Firewall

Which type of firewall inspects the traffic coming to an application?

Proxy firewalls

Task 3: Rules in Firewalls#

The basic components of a firewall’s rule are:

Source address
Destination address
Port
Protocol
Action
Direction

Three main actions can be applied to a rule:

Allow
Deny
Forward

Firewalls have different categories of rules based on traffic directionality:

Inbound Rules
Outbound Rules

Which type of action should be defined in a rule to permit any traffic?

allow

What is the direction of the rule that is created for the traffic leaving our network?

outbound

Task 4: Windows Defender Firewall#

Windows Defender is a built-in firewall introduced by Microsoft in the Windows OS.

alt text

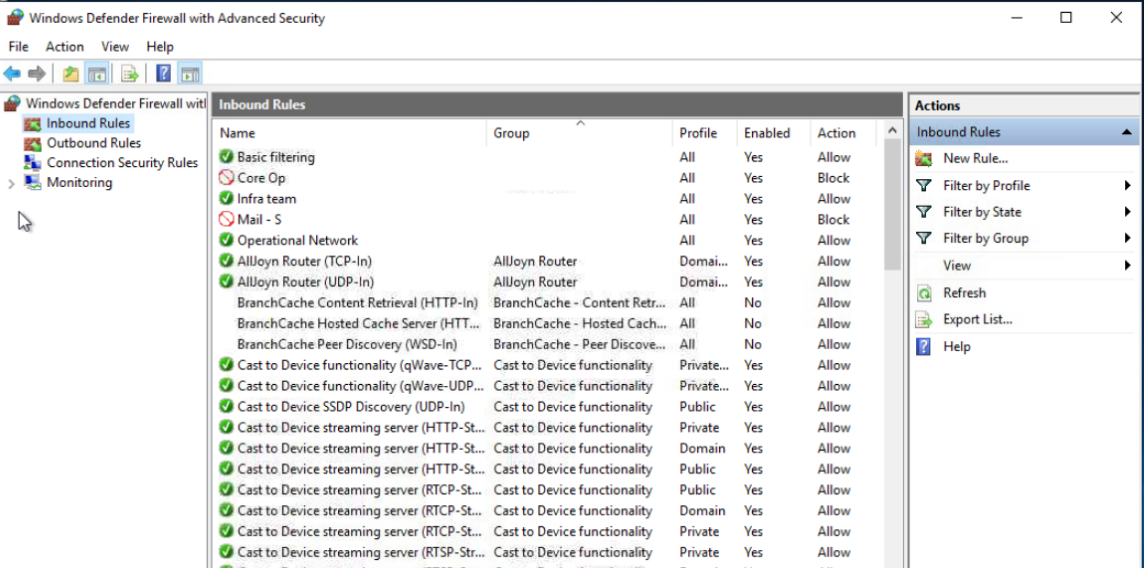

What is the name of the rule that was created to block all incoming traffic on the SSH port?

Core Op

alt text

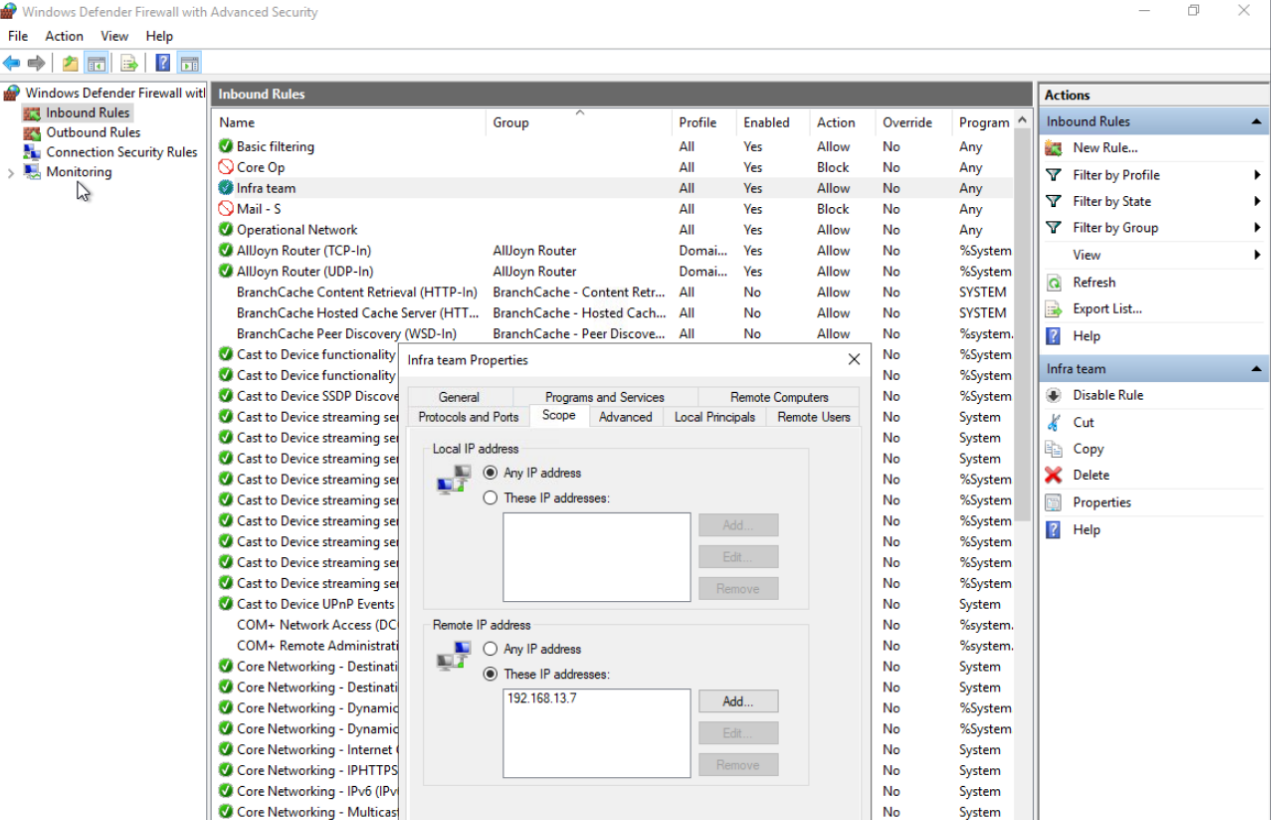

A rule was created to allow SSH from one single IP address. What is the rule name?

Infra team

Which IP address is allowed under this rule?

192.168.13.7

Task 5: Linux iptables Firewall#

Linux offers the functionality of a built-in firewall.

Netfilter#

Netfilter is the framework inside the Linux OS with core firewall functionalities, including packet filtering, NAT, and connection tracking. Common firewall utilities that utilize this framework are iptables, nftables, and firewalld.

ufw (Uncomplicated Firewall)#

ufw, as the name says, eliminates the complications of making rules in a complex syntax by giving you an easier interface. Some basic ufw commands include:

sudo ufw status: To check the status of the firewall.
sudo ufw enable: To enable the firewall.
sudo ufw deny 22/tcp: To deny incoming traffic on a specific port.
sudo ufw status numbered: To list all active rules in a numbered order.
sudo ufw delete <number>: To delete a rule.

Which Linux firewall utility is considered to be the successor of “iptables”?

nftables

What rule would you issue with ufw to deny all outgoing traffic from your machine as a default policy? (answer without sudo)

ufw default deny outgoing
